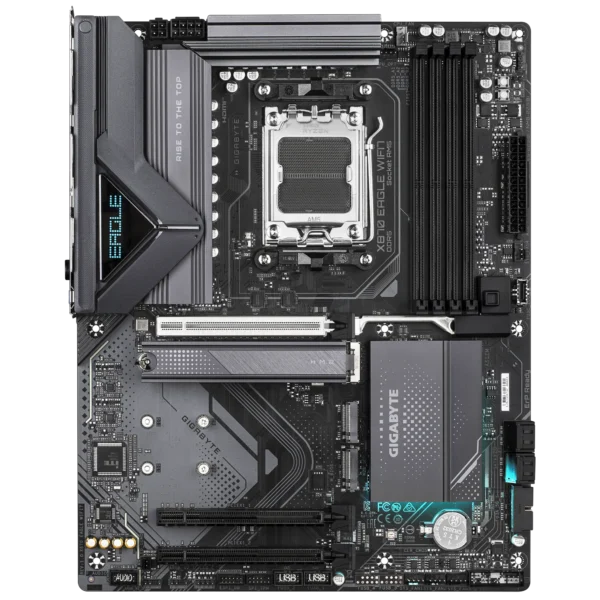

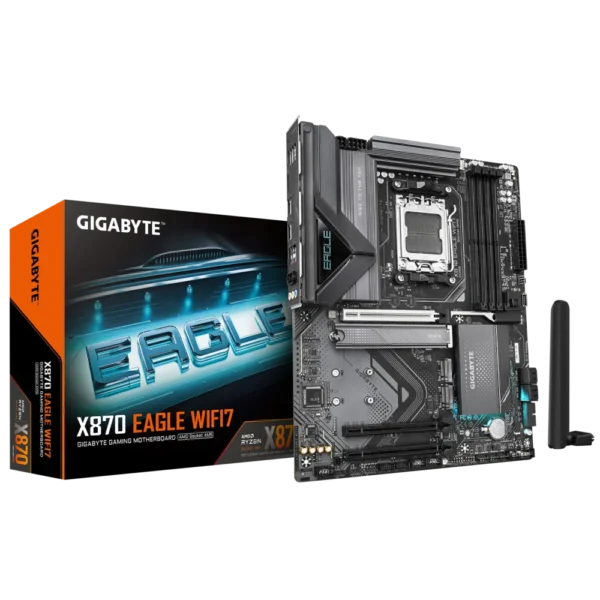

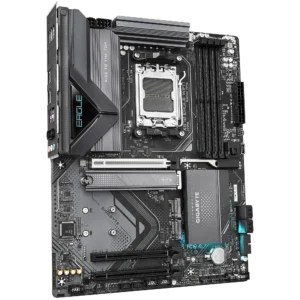

BOARD GIGABYTE X870 EAGLE WIFI7 AM5 DDR5 AMD Ryzen™9000 / 8000 / 7000

AMD Socket AM5, soporte para:
procesadores AMD Ryzen™ serie 9000/
procesadores AMD Ryzen™ serie 8000/
procesadores AMD Ryzen™ serie 7000
(visite el sitio web de GIGABYTE para obtener la lista más reciente de procesadores compatibles).

Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to «Memory Support List» on GIGABYTE’s website for more information.)

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
– 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

CPU+ASMedia USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panel
CPU:
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports available through the internal USB headers

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

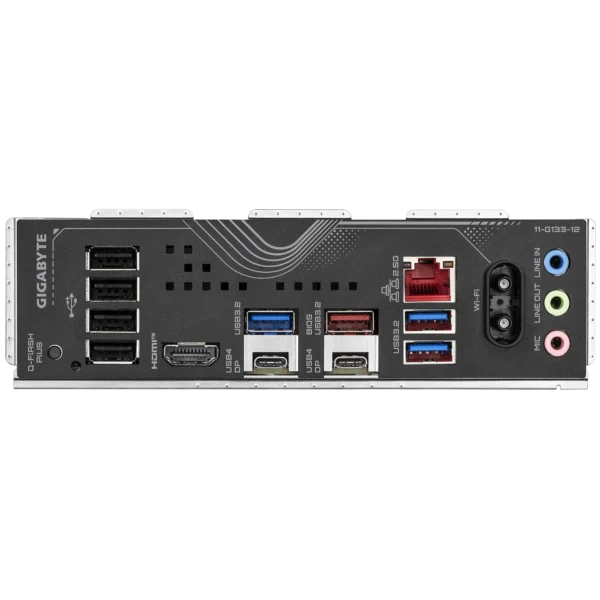

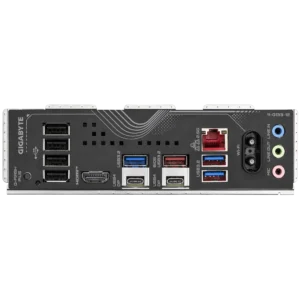

1 botón Q-Flash Plus
2 conectores de antena (2T2R)
1 puerto HDMI*
2 puertos USB4® USB Type-C® (DisplayPort*)
1 puerto USB 3.2 Gen 2 Tipo A (rojo)
3 puertos USB 3.2 Gen 1 4 puertos
USB 2.0/1.1
1 puerto RJ-45
3 conectores de audio

* La compatibilidad real puede variar según la CPU.

Detección de voltaje
Detección de temperatura
Detección de velocidad del ventilador
Detección del caudal de refrigeración por agua
Advertencia de falla del ventilador
Control de velocidad del ventilador
* La compatibilidad de la función de control de velocidad del ventilador (bomba) dependerá del ventilador (bomba) que instale.

1 x 256 Mbit flash
Uso de AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 con licencia

Soporte para el Centro de Control de GIGABYTE (GCC)
* Las aplicaciones disponibles en GCC pueden variar según el modelo de placa base. Las funciones compatibles con cada aplicación también pueden variar según las especificaciones de la placa base.

Soporte para Q-Flash
Soporte para Q-Flash Plus
Soporte para copia de seguridad inteligente

Software de gestión del ancho de banda LAN Norton® Internet Security (versión OEM)
